GFH-Series High Purity All-Halar Fluoropolymer Depth Media

GFH-Series are ideal for filtration of aggressive solvents, acids, and caustics.

Constructed of 100% ECTFE Halar for superior chemical tolerance in demanding industrial applications. The meltblown microfiber media provides excellent flow at low-pressure drop and greater contaminant holding capacity relative to membrane-based options. The >90% typical retention efficiency allows for use as either a pre-filter or final filtration solution.

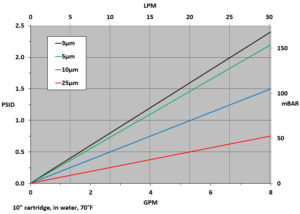

Performance Chart

*All data is based on absolute rated medias. Nominally rated medias will result in a pressure drop reduction of approximately 10%.


Typical Applications

  • Bulk Chemical Polishing
  • Ozonated Process Systems or Water
  • Toluene
  • Xylene

Construction Materials

  • Filtration Media: ECTFE
  • Support Media: ECTFE
  • End Caps: ECTFE
  • Center Core: ECTFE
  • Outer Support Cage: ECTFE
  • O-Rings/Gaskets: Teflon® Encapsulated Viton®, Viton®

Operating Conditions

  • Change Out ΔP (recommended): 35 PSID
  • Temperature (max): 190˚F (88˚C)
  • Differential Pressure (max):
    60 PSID (4.1 bar) at 68˚F (20˚C)

Dimensions

  • Length: 10 to 40 inches (25.4 to 101.6 cm) nominal
  • Outside Diameter: 2.70 inches (7.0 cm) nominal

Sanitization/Sterilization

  • GFH cartridges may be sanitized using compatible chemical agents. GFH cartridges may not be autoclaved or steam sterilized.

Toxicity

  • All polypropylene components meet the specifications for biological safety per USP Class VI – 121˚C for plastics.

Food Safety Compliance

Materials of construction comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulations, 21CFR. Materials used to produce filter media and hardware are deemed safe for use in contact with foodstuffs in accordance with EU Directives 2002/72/EC, 1935/2004, and/or 10/2011.
