FGEHT-Series High Temperature Economy Grade Pleated Microglass Media
FGEHT-Series High Purity High Temperature Economy Grade Pleated Borosilicate Microglass Filter Cartridges offer high-efficiency retention of particulate matter from high-temperature liquid and gaseous fluid streams.
FGEHT-Series Overview
FGEHT-Series High Purity High Temperature Economy Grade Pleated Borosilicate Microglass Filter Cartridges offer high-efficiency retention of particulate matter from liquid and gaseous fluid streams. Favored for its superior retention efficiency, low-pressure drop, and greater contaminant loading capacity relative to alternative media. The FGEHT-Series is often the preferred choice when the application calls for a more economical option or where the 2.5” OD is required. The polyester hardware construction allows extended temperature use (up to 200°F).
Suitable for food and potable water contact, the FGEHT-Series meets the high-performance demands in food and beverage production. Also suitable for use in a broad range of applications, including process water, lubricants, and a range of fine chemicals. Manufactured in a clean-room environment to maintain high standards of purity and cleanliness.
Offered in both absolute-rated (up to 99.98 retention) and nominally-rated (90% retention) grades in common adapter configurations.

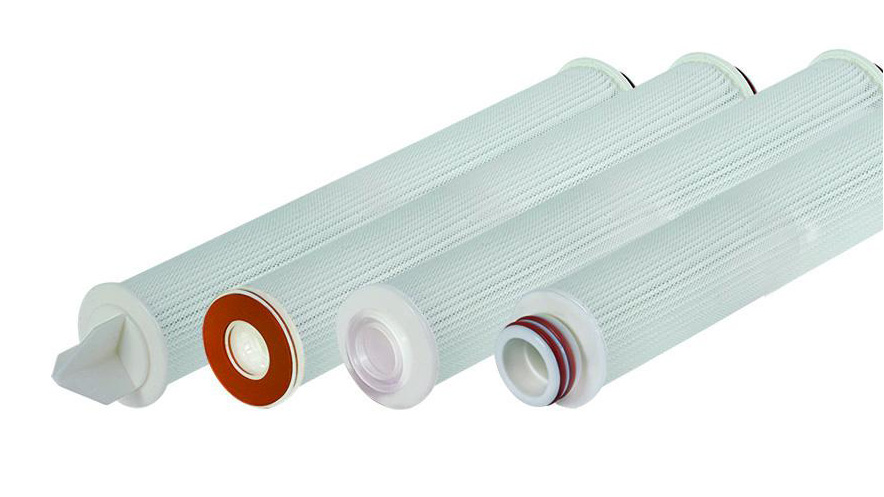

Construction
Filtration Media – Borosilicate Microglass with Acrylic Binder
Support Media – Spun-bonded Polyester
End Caps – Polyester
Center Core – Glass-filled Polypropylene
Outer Support Netting – Polyester
Outside Diameter – 2.5″
Typical Applications
- Food & Beverage
- Deionized Water
- Process Water
- Fine Chemicals
- R.O. Prefiltration
- Wastewater
- Wine or Beer Clarification
- Sweeteners
Operating Conditions
- Change Out ΔP (recommended): 35 PSID
- Temperature (max): 200˚F (93˚C)
- Differential Pressure (max): 60 PSID (4.1 bar) at 68˚F (20˚C)

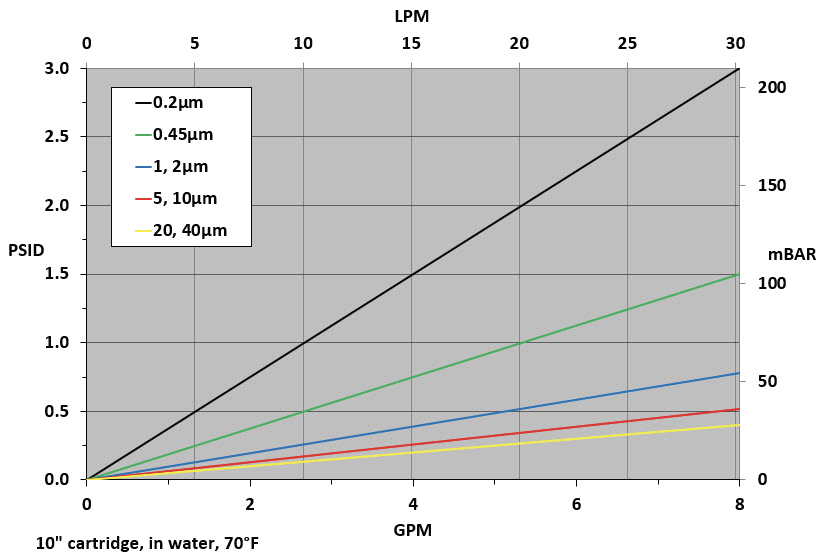

Flow Rate vs Pressure Drop
Food Saftey Compliance
Materials of construction comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulations, 21 CFR. Materials used to produce filter media and hardware are deemed safe for use in contact with foodstuffs in accordance with EU Directives 1935/2004, and/or 10/2011.
FGEHT-Series Ordering Specifications
| Micron Ratings | 0.2, 0.45, 1.0, 2.0, 5.0, 10.0, 20.0, 40.0 |
| Retention | N = Nominal A = Absolute |
| Lengths | 10″, 20″, 30″, 40″ |
| End Cap Styles | 2 = DOE Flat Gasket 3 = 222 w/ FIN 4 = 222 w/ Flat Cap 5 = 222 w/ Spring |
| O-Rings/ Gaskets | B = Buna E = EPDM S = Silicon T = Teflon® Encapsulate Viton® V = Viton® |
| Adders | CS = 316SS Compression Spring I = Stainless Steel Insert SS = Stainless Steel Core |
