Cartridge Vessels

Global Filter cartridge vessels are adaptable and suited for contaminant removal in a wide variety of industrial and commercial applications.

Cartridge/Bag Vessels and Accessories

Global Filter vessels meet the requirements for the broadest range of applications and industries. Not only do we have versatile vessel products, we offer a wide range of vessel accessories to enhance your filtration products and systems.

Cartridge/Bag Vessels On-Site Inventory

Our extensive stock allows you to customize your application, with the shortest lead times available.

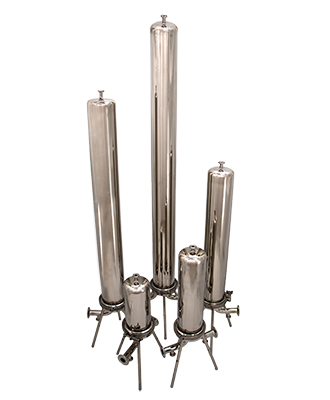

GSTL-Series Single Sanitary Cartridge Liquid Filter Vessels

GSTL-Series Single Sanitary Cartridge Liquid Filter Vessels are suited for a wide variety of filtration applications where full sanitary vessels are required. V-band clamp closure provides easy access for change out. Available in 316 stainless steel, and rated for 150psi service.

Applications

  • Active pharmaceutical ingredients
  • Blood & serum
  • Cell culture media & diagnostics
  • Fine chemicals
  • High-purity water systems
  • Wine, beer & spirits

Features

  • Sanitary V-band closure operates easily and seals tightly
  • Excellent cleanability with crevice-free welding and internal mirror electropolished (EP) finish, <0.63um Ra
  • Suitable for steam-in-place (SIP) and clean-in-place (CIP) processes
  • Designed for 222 or 226 cartridge end cap configuration
  • Standard with 1” TC inlet and outlet and 1/2” TC vent
  • 1/2” TC inlet side drain port allows for complete evacuation prior to change-out
  • Available in 5”, 10“, 20”, 30“ and 40” lengths
  • 316 stainless steel construction
  • Silicone seal (standard)
  • 150 PSI pressure rating at 200° F
  • T-style port design

Alternate Seal Materials

  • EPDM
  • Viton® FKM
  • PTFE (Teflon®)

Liquid Vessel Drawings

Cartridge Liquid Vessels (1″ TC 222)

Cartridge Liquid Vessels (1″ TC 226)


GFHD-Series Single-Cartridge Liquid Filter Vessels

GFHD-Series Single-Cartridge Vessels are suited for a wide variety of filtration applications. A ring-nut closure provides easy access for change-out. Rated for 300 PSI service, models are available in either 304 or 316 stainless steel construction.
Features

Features

  • DOE design features a spring-loaded bottom seat cup which allows for easy installation and positive seal
  • Ring-nut allows for easy change-out (wrench pin is included as standard, spanner wrench is optional)
  • 3/4” and 1“ inlet and outlet available in NPT and BSPP for ease of installation
  • 1/4” NPT dirty drain port allows for complete evacuation prior to change-out
  • Available in 5”, 10“, 20”, 30“ lengths to accept cartridges up to 3” OD
  • 304 or 316 stainless steel construction (passivated finish)
  • Offered in DOE, 222/FLAT* or 226/FLAT* configurations
  • Heavy-duty cast head with mounting bracket
  • Dual closure seal (EPDM standard)
  • 300 PSI pressure rating
  • Inline port design

Alternate Seal Materials

  • Viton®
  • Buna
  • Teflon® Encapsulated Viton®

Liquid Vessel Drawings

  GFHD Cartridge Vessel


GTCHB-Series Multi-Cartridge Band Clamp Liquid Filter Vessels

GTCHB-Series Multi-Cartridge Vessels are designed for industrial and commercial applications. Vessels are constructed of 304 or 316L stainless steel and accept DOE, 222/FLAT and 222/FIN end cartridges in 10, 20, 30 & 40 inch lengths.

Features

  • Easy access, self-centering heavy-duty band-clamp closure
  • Heavy-duty welded mounting/support legs
  • Single o-ring design (Buna standard)
  • Universal seal cups and compression plates allow vessels to accept DOE, 222/FLAT or 222/FIN cartridges
  • Poly-coat finish (exterior only)
  • 316L stainless steel cap/spring assemblies and V-posts
  • 150 PSI pressure rating

Options

  • Electropolished Finish
  • Sanitary Porting
  • EPDM (required for NSF-61)

Alternate Seal Materials

  • EPDM (required for NSF-61)
  • Teflon®
  • Encapsulated Viton®
  • Viton®

Liquid Vessel Drawings

  4 & 5 – Cartridge Band-Clamp

  7 – Cartridge Band-Clamp

  12 – Cartridge Band-Clamp

  22 – Cartridge Band-Clamp


GTCH Series Cartridge Vessels

GTCH Series Multi-round Cartridge Vessels are designed for industrial and high purity applications. Vessels are constructed of 304 or 316L stainless steel and accept DOE, 222/FLAT, and 222/FIN end cartridges in 10, 20, 30 & 40 inch lengths.

Features

  • 304 & 316L stainless steel construction
  • 150 PSI pressure rating standard
  • Single o-ring design (Buna-N standard)
  • Easy-access eye-nuts/swing-bolt closure
  • Compression/hold-down platets to accept DOE, 222/FLAT or 222/FIN cartridges
  • Heavy-duty welded angle mounting/support legs
  • Bearing-assisted hand-wheel closure davit (GTCH12 & larger)

Options

  • ASME Code Stamp
  • CE Mark
  • Electropolished Finish
  • Sanitary Porting

Alternate Seal Materials

  • EPDM (required for NSF-61)
  • Teflon®
  • Encapsulated Viton®
  • Viton®

Liquid Vessel Drawings

3 – Cartridge Liquid Vessels (1.5″ T)

3 – Cartridge Liquid Vessels (1.5″ F)

5 – Cartridge Liquid Vessels (1.5″ T)

5 – Cartridge Liquid Vessels (1.5″ F)

5 – Cartridge Liquid Vessels (1.5″ NPT)

5 – Cartridge Liquid Vessels (2″ T)

5 – Cartridge Liquid Vessels (2″ F)

5 – Cartridge Liquid Vessels (2″ NPT)

7 – Cartridge Liquid Vessels (2″ F)

7 – Cartridge Liquid Vessels (2″ NPT)

7 – Cartridge Liquid Vessels (3″ F)

12 – Cartridge Liquid Vessels (3″ F)

21 – Cartridge Liquid Vessels (4″ F)

36 – Cartridge Liquid Vessels (4″ F)

36 – Cartridge Liquid Vessels (6″ F)

51 – Cartridge Liquid Vessels (6″ F)
