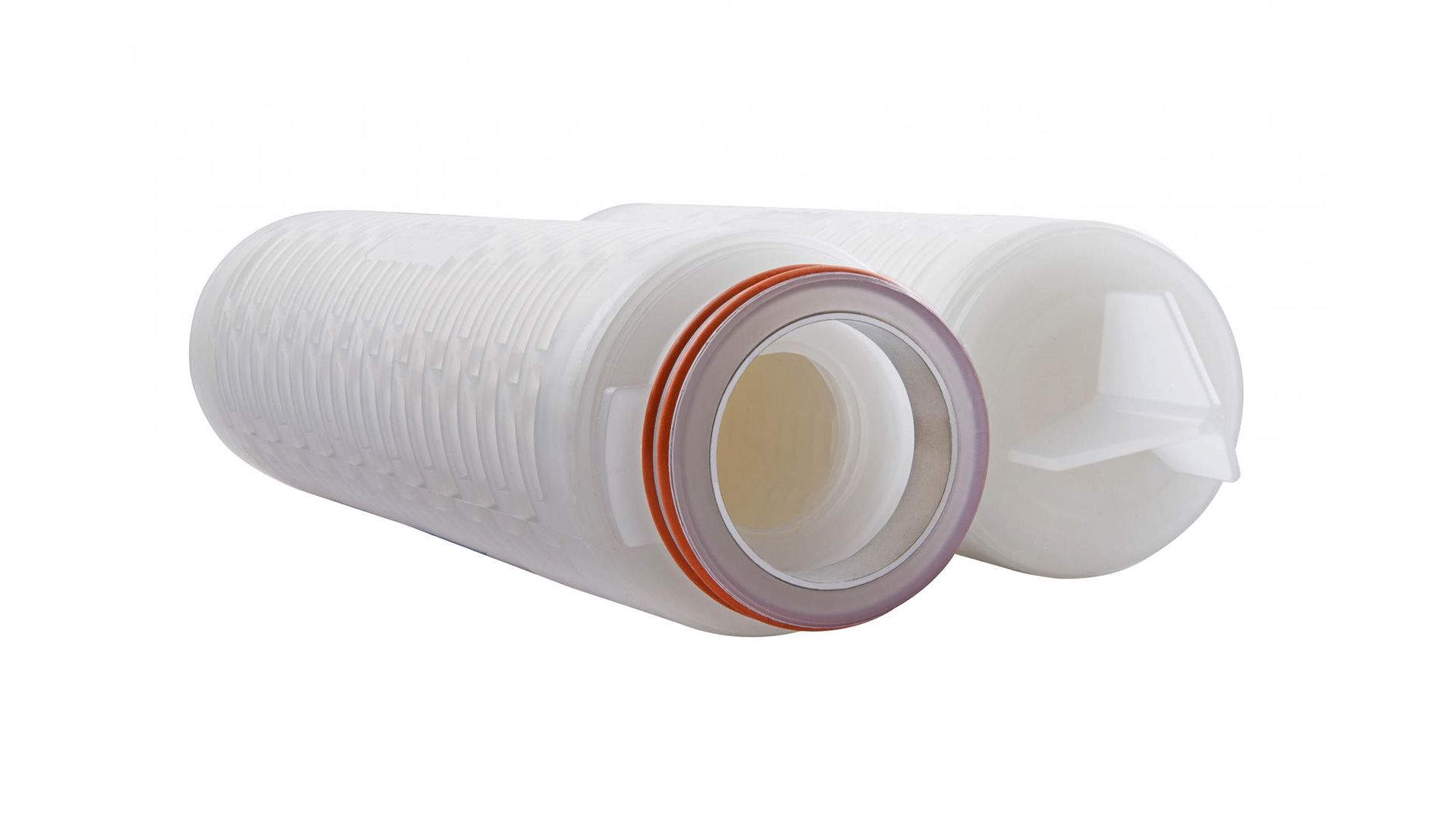

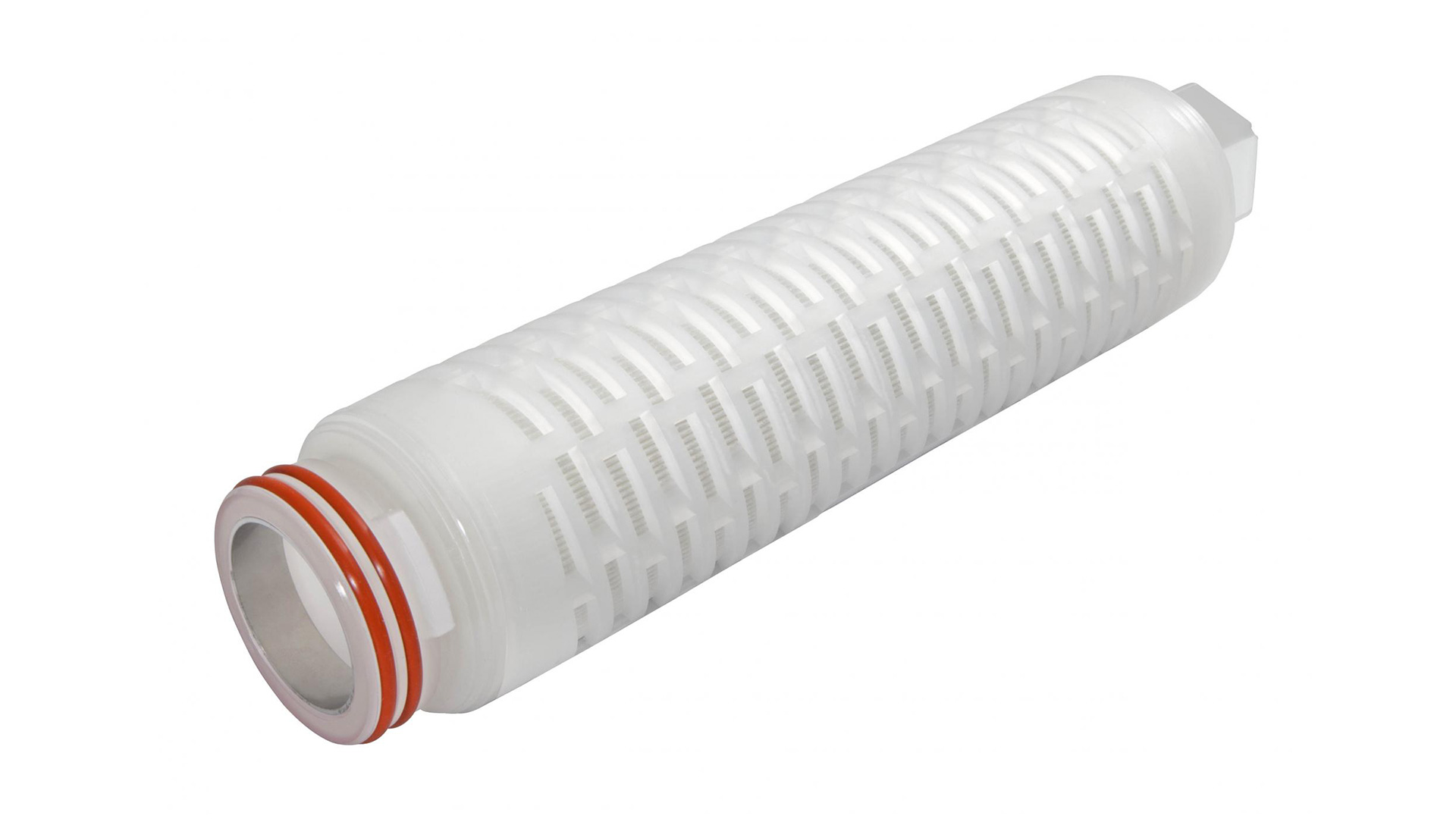

Pleated Membrane Cartridges
Global Filter Pleated membrane cartridges provide extremely high removal efficiencies allowing for the removal of particulate and microbial contaminants. Multiple media and grade options are available to optimize a filtration train for the most demanding applications in liquid and air filter manufacturing. In a typical process flow, used as a prefilter to final polishing membranes or in a final filtration step to remove microbial contaminants.
Hydrophilic Polysulfone
Offers exceptional flowrate and loading capability by virtue of its highly asymmetrical pore structure. Commonly used as a pre or final filter in high purity applications.
Hydrophobic Polysulfone
Provides a cost-effective alternative to PTFE or PVDF membrane cartridges. Ideal for air and vent applications.
Polyethersulfone
Offers excellent flux density and low protein-binding. Ideal for optimal flow capacity and particulate retention in water, food, and beverage applications.
Nylon 6, 6
Provides excellent particulate retention and cleanliness for a variety of applications. The positively charged option provides removal of endotoxins and negatively charged contaminants.
PTFE
Provides superior chemical resistance for a broad range of industrial applications. Known for highly efficient particulate retention and the hydrophobic media performs well in both air and liquid applications.
