Cartridge Vessels

Global Filter cartridge housings are adaptable and suited for contaminant removal in a wide variety of industrial and commercial applications.

Cartridge/Bag Vessels and Accessories

Global Filter housings meet the requirements for the broadest range of applications and industries. Not only do we have versatile vessel products, we offer a wide range of vessel accessories to enhance your filtration products and systems.

Cartridge/Bag Housings On-Site Inventory

Our extensive stock allows you to customize your application, with the shortest lead times available.


GSTL-Series Single Sanitary Cartridge Liquid Filter Vessels

GSTL-Series Single Sanitary Cartridge Liquid Filter Vessels are suited for a wide variety of filtration applications where full sanitary vessels are required. V-band clamp closure provides easy access for change out. Moreover, they are available in 316 stainless steel, and rated for 150psi service.

Applications

  • Active pharmaceutical ingredients
  • Blood & serum
  • Cell culture media & diagnostics
  • Fine chemicals
  • High-purity water systems
  • Wine, beer & spirits

Features

  • Sanitary V-band closure operates easily and seals tightly
  • Excellent cleanability with crevice-free welding and internal mirror electropolished (EP) finish, <0.63um Ra
  • Suitable for steam-in-place (SIP) and clean-in-place (CIP) processes
  • Designed for 222 or 226 cartridge end cap configuration
  • Standard with 1” TC inlet and outlet and 1/2” TC vent
  • 1/2” TC inlet side drain port allows for complete evacuation prior to change-out
  • Available in 5”, 10“, 20”, 30“ and 40” lengths
  • 316 stainless steel construction
  • Silicone seal (standard)
  • 150 PSI pressure rating at 200° F
  • T-style port design

Alternate Seal Materials

  • EPDM
  • Viton® FKM
  • PTFE (Teflon®)

Liquid Vessel Drawings

Cartridge Liquid Vessels (1″ TC 222)

Cartridge Liquid Vessels (1″ TC 226)


AFS-Series Multi-Cartridge Sanitary Filter Vessels

Global Filter has specially designed multi cartridge filter housing for sterile filter applications. We can offer a range of high quality sanitary filter housings in stainless steel. The AFS-Series vessels have proven their quality in the pharmaceutical and beverage industries.

Features

• Hygienic and compact designed filter housing
• Suitable for 3, 5 or 8 filter cartridges
• Filter housing can be fully drained
• Suitable for length 10”, 20”, 30” or 40” filter cartridges • Externally mechanically polished
• Various instrument configurations possible
• Suitable for cartridges with end-cap configuration codes 7 or 3 and 8

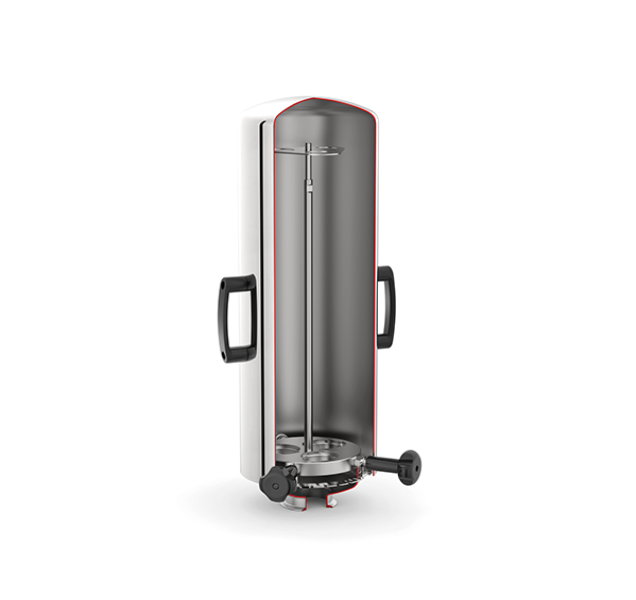

GFTVE-Series Single and Multi-Cartridge Liquid Filter Vessels

The GFTVE-Series atmospheric single and multi-cartridges filter housing for filtering tank air are designed for a broad number of industries including Food & Beverage, Chemical and Pharmaceutical Industries. Constructed of 316L stainless steel and accept 226/FIN end cartridges in 10, 20, 30 & 40inch lengths. The GFTVE Series vessels comply with the European regulations and the PED 2014/ 68 / EU.

Features

• 316L stainless steel construction
•1 to 8 cartridges filter series, 10”- 40” length, designed for air filtration on tanks.
•Easy handling with light bowl
•Design with handles for safety handling.
•High quality laser marking etching. Each housing is labeled with an individual serial number on base and bowl in order to guarantee complete traceability. •AISI 316L grade stainless steel used for all critical parts.
•Cartridges socket 226 CODE 7 (bayonet). •Atmospheric filter housing.
•Outlet connections CLAMP,
•External finishing mirror polishing, internal finishing mechanical polishing.
•Free of charge documentation supplied: User Manual, Declaration of Conformity.
•100% sockets tested and verified in order torespect the cartridge tolerances.
•Final inspection before shipment.
•Model design for easy installation.
•Heavy duty packaging.
•Gasket: silicone material as standard
•Food grade complicance CE 1935/2004


GFHD-Series Single-Cartridge Liquid Filter Vessels

GFHD-Series Single-Cartridge Vessels are suited for a wide variety of filtration applications. A ring-nut closure provides easy access for change-out. Rated for 300 PSI service, models are available in either 304 or 316 stainless steel construction.

Features

  • DOE design features a spring-loaded bottom seat cup which allows for easy installation and positive seal
  • Ring-nut allows for easy change-out (wrench pin is included as standard, spanner wrench is optional)
  • 3/4” and 1“ inlet and outlet available in NPT and BSPP for ease of installation
  • 1/4” NPT dirty drain port allows for complete evacuation prior to change-out
  • Available in 5”, 10“, 20”, 30“ lengths to accept cartridges up to 3” OD
  • 304 or 316 stainless steel construction (passivated finish)
  • Offered in DOE, 222/FLAT* or 226/FLAT* configurations
  • Heavy-duty cast head with mounting bracket
  • Dual closure seal (EPDM standard)
  • 300 PSI pressure rating
  • Inline port design

Alternate Seal Materials

  • Viton®
  • Buna
  • Teflon® Encapsulated Viton®

Liquid Housing Drawings

  GFHD Cartridge Vessel


GTCHB-Series Multi-Cartridge Band Clamp Liquid Filter Vessels

GTCHB-Series Multi-Cartridge Vessels are designed for industrial and commercial applications. Moreover, those housings are constructed of 304 or 316L stainless steel and accept DOE, 222/FLAT and 222/FIN end cartridges in 10, 20, 30 & 40 inch lengths.

Features

  • Easy access, self-centering heavy-duty band-clamp closure
  • Heavy-duty welded mounting/support legs
  • Single o-ring design (Buna standard)
  • Universal seal cups and compression plates allow vessels to accept DOE, 222/FLAT or 222/FIN cartridges
  • Poly-coat finish (exterior only)
  • 316L stainless steel cap/spring assemblies and V-posts
  • 150 PSI pressure rating

Options

  • Electropolished Finish
  • Sanitary Porting
  • EPDM (required for NSF-61)

Alternate Seal Materials

  • EPDM (required for NSF-61)
  • Teflon®
  • Encapsulated Viton®
  • Viton®

Liquid Vessel Drawings

  4 & 5 – Cartridge Band-Clamp

  7 – Cartridge Band-Clamp

  12 – Cartridge Band-Clamp

  22 – Cartridge Band-Clamp


GTCH Series Cartridge Vessels

GTCH Series Multi-round Cartridge Vessels are designed for industrial and high purity applications. Housings are constructed of 304 or 316L stainless steel and accept DOE, 222/FLAT, and 222/FIN end cartridges in 10, 20, 30 & 40 inch lengths.

Features

  • 304 & 316L stainless steel construction
  • 150 PSI pressure rating standard
  • Single o-ring design (Buna-N standard)
  • Easy-access eye-nuts/swing-bolt closure
  • Compression/hold-down platets to accept DOE, 222/FLAT or 222/FIN cartridges
  • Heavy-duty welded angle mounting/support legs
  • Bearing-assisted hand-wheel closure davit (GTCH12 & larger)

Options

  • ASME Code Stamp
  • CE Mark
  • Electropolished Finish
  • Sanitary Porting

Alternate Seal Materials

  • EPDM (required for NSF-61)
  • Teflon®
  • Encapsulated Viton®
  • Viton®

Liquid Housing Drawings

3 – Cartridge Liquid Vessels (1.5″ T)

3 – Cartridge Liquid Vessels (1.5″ F)

5 – Cartridge Liquid Vessels (1.5″ T)

5 – Cartridge Liquid Vessels (1.5″ F)

5 – Cartridge Liquid Vessels (1.5″ NPT)

5 – Cartridge Liquid Vessels (2″ T)

5 – Cartridge Liquid Vessels (2″ F)

5 – Cartridge Liquid Vessels (2″ NPT)

7 – Cartridge Liquid Vessels (2″ F)

7 – Cartridge Liquid Vessels (2″ NPT)

7 – Cartridge Liquid Vessels (3″ F)

12 – Cartridge Liquid Vessels (3″ F)

21 – Cartridge Liquid Vessels (4″ F)

36 – Cartridge Liquid Vessels (4″ F)

36 – Cartridge Liquid Vessels (6″ F)

51 – Cartridge Liquid Vessels (6″ F)
