GEPES-Series Electric Grade Polyethersulfone
GEPES-Series High Purity Electronics Grade Polyethersulfone Filter Cartridges meet the stringent requirements of cleanliness of the microelectronics industry.
GEPES-Series Overview
GEPES-Series High Purity Electronics Grade Polyethersulfone Filter Cartridges meet the stringent requirements of cleanliness of the microelectronics industry. The polyethersulfone membrane offers high flux density and provides superior throughput for extended operating life. Cartridges undergo extended flushing with 18 megaohms of ultra-high purity water to achieve extraordinarily low levels of extractable substances. Each element is integrity tested for optimized, highly consistent performance. Manufactured in a clean-room environment to maintain high standards of purity and cleanliness.
Typical Applications
- Ultra-Pure Water Systems
- Fine Chemicals
- Photoresist Chemicals
Construction Materials
- Membrane: Polyethersulfone
- Support Media: Polypropylene
- End Caps: Polypropylene
- Center Core: Polypropylene
- Outer Support Cage: Polypropylene
- O-Rings/Gaskets: Buna, EPDM, Silicone, Teflon® Encapsulated Viton®, Viton®, Teflon® Encapsulated Silicone
Operating Conditions
- Change-Out ΔP (recommended): 35 PSID
- Temperature (max): 176˚F (80˚C)
- Differential Pressure (max): 50 PSID (3.4 bar) at 68˚F (20˚C)
Sanitization/Sterilization
- Filtered Hot Water: 80˚C for 30 min.
- Steam Sterilization: 121˚C for 30 min., multiple cycles
- Chemicals: Cartridges are compatible with most chemical sanitizing agents.
- Note: Stainless steel insert option required for all cartridges being hot water sanitized or steam sterilized.
Toxicity
All polypropylene components meet the specifications for biological safety per USP Class VI – 121˚C for plastics.

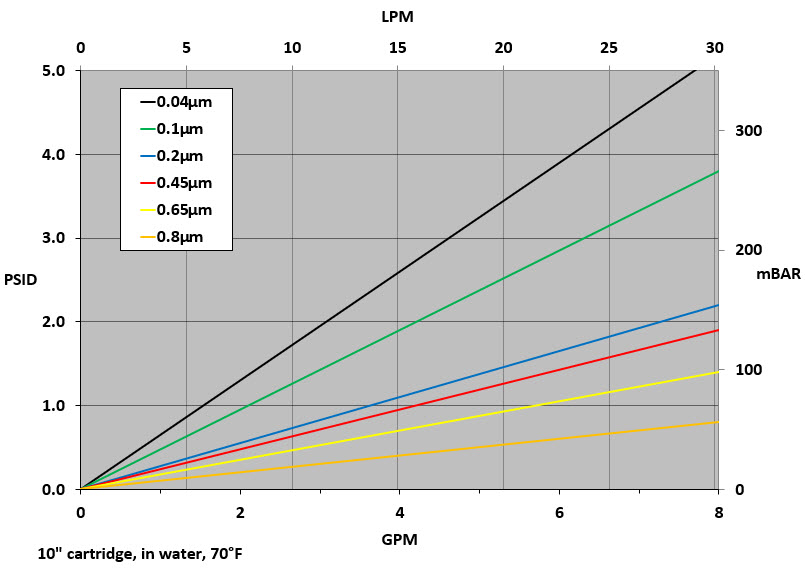

Flow Rate vs Pressure Drop
Dimensions
- Length: 10 to 40 inches ( 254 to 101.6 cm) nominal
- Outside Diameter: 2.70 inches (7.0 cm) nominal
Food Safety Compliance
Materials of construction comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulations, 21 CFR. Materials used to produce filter media and hardware are deemed safe for use in contact with foodstuffs in accordance with EU Directives 2002/72/EC, 1935/2004, and/or 10/2011.
GEPES-Series Ordering Specifications
| Micron Ratings | 0.04, 0.1, 0.2, 0.45, 0.65, 0.8 |
| Length | 10″, 20″, 30″, 40″ |
| End Cap Style | 2 = DOE Flat Gasket 3 = 222 w/ Fin 4 = 222 w/ Flat Cap 6 = 226 w/ Flat Cap 7 = 226 w/ Fin 16 = 213 w/ Internal O-Ring 28 = 222 3-Tabs w/ Fin |
| O-Rings/Gaskets | B = Buna E = EPDM S = Silicone T = Teflon® Encapsulated Viton® V = Viton® Z = Teflon® Encapsulated Silicone |
| Adders | CS = 316SS Compression Spring I = Stainless Steel Insert |
